MistKing Advanced Misting System v5.0

The MistKing Advanced Misting System v5.0 is a high-capacity automated misting solution built for serious reptile and amphibian keepers managing large or complex enclosure setups. With a 3/8" backbone architecture and a pump rated to 125psi, this system is engineered to support between 10 and 70+ nozzles — making it the go-to choice for multi-vivarium rooms, zoological collections, and large-scale tropical builds. If you're running fewer than 20 nozzles, a smaller MistKing system will likely serve you better; this kit is designed for those who need real capacity and reliability at scale.

Pump Performance

The large-capacity diaphragm pump is manufactured specifically for MistKing and built to run continuously for extended periods — even without water in the line. Capable of maintaining pressures up to 125psi, it delivers consistent output across a high nozzle count without drop-off. This is not a consumer-grade pump adapted for reptile use; it is purpose-built for this application.

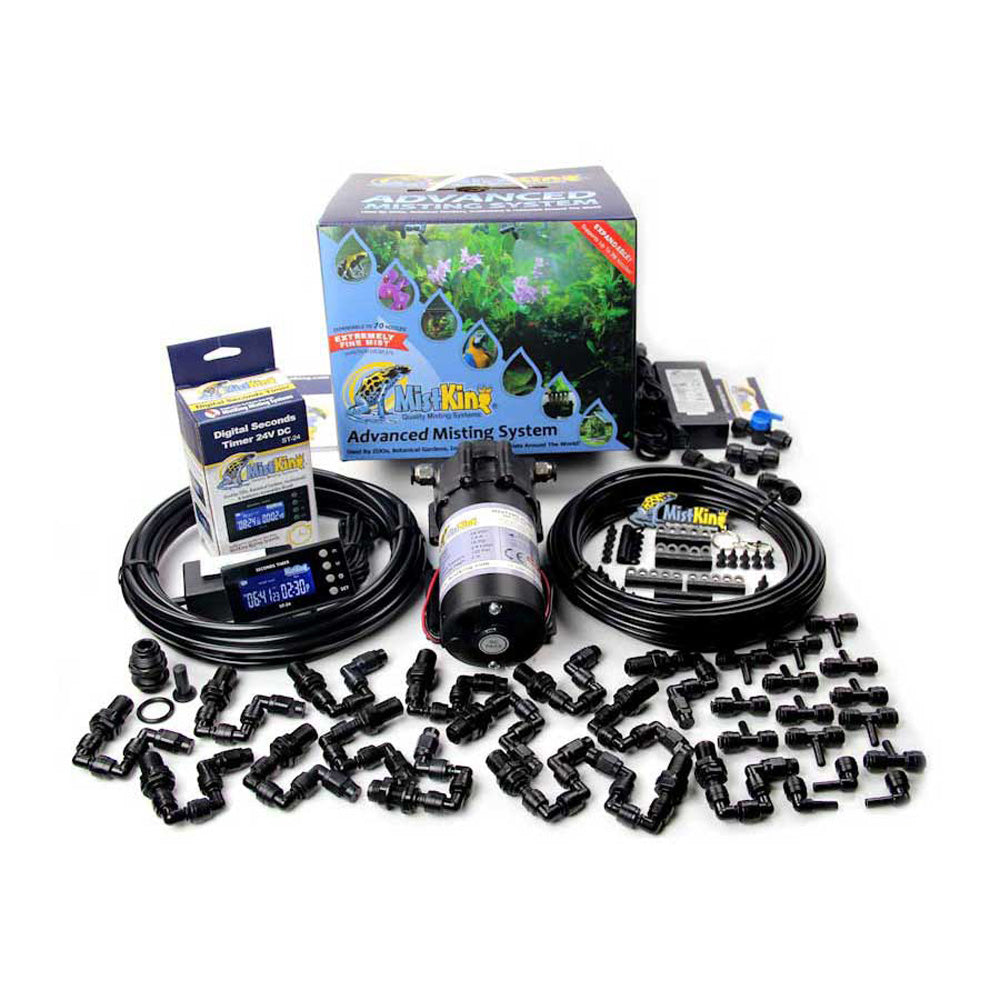

What's Included

• Large-capacity diaphragm pump with 3/8" fittings
• 24V power adapter (CE and cUL listed)
• 3/8" reservoir bulkhead with plug
• 3/8" ball valve
• 35 feet of 1/4" black opaque tubing (nozzle feeds)
• 15 feet of 3/8" black opaque tubing (reservoir-to-pump and backbone runs)
• 12 Value "T" misting assemblies
• 3 Value "L" misting assemblies
• 2 reducing tee connections (3/8" to 1/4")
• 1 reducing elbow connection (3/8" to 1/4")
• 20 x 1/4" tubing clips
• 10 x 3/8" tubing clips
• Seconds timer ST-24
• Installation instructions

System Design and Expandability

The kit ships ready to use — add a suitable reservoir and you're operational from the outset. For larger builds, the 3/8" backbone can be extended with additional reducing tee connections, branching into 1/4" lines that feed individual misting assemblies. A 7-port manifold fed by 3/8" tubing is also a compatible option, or both approaches can be combined for more complex layouts.

Timer

The ST-24 seconds timer is included as standard, giving precise misting duration control suited to most vivarium and terrarium humidity schedules. If your setup requires a different timer configuration, MistKing offer alternative timer options that are compatible with this system.

Whether you're running a single large tropical enclosure or an entire animal room across multiple vivariums, the MistKing Advanced Misting System v5.0 gives you the infrastructure to build a reliable, expandable misting setup without compromise.
